Our substrates

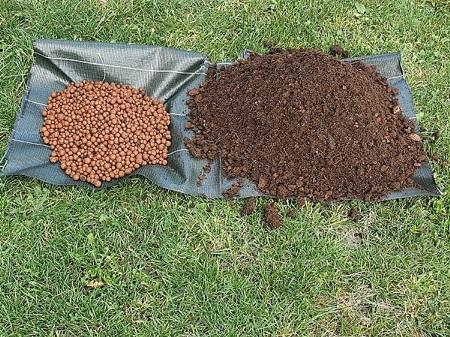

Our Biopratic planters can be delivered with substrates comprising:
- A 50-litre bag of clay beads,
- A geotextile sheet.
- 4, 50-litre bags of Biopratic substrates
Developed by a specialist in the Rhône-Alpes regions, the composition of our substrates means that you only need to renew them by a third each year (although it is recommended to enrich them from the 2nd year, as is the case with a traditional planter).
Composition of our substrates

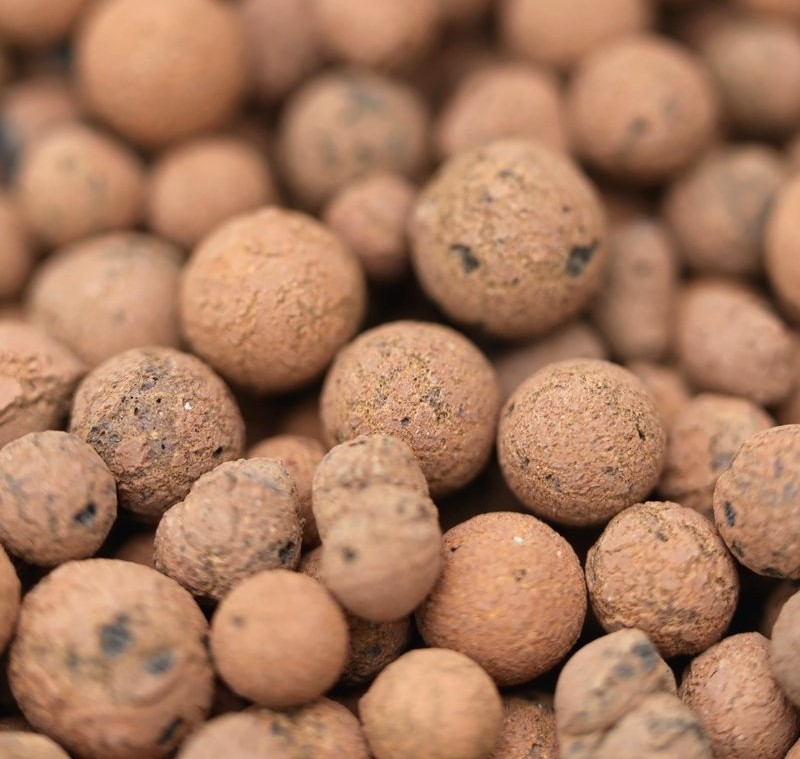

Clay beads: 1, 50-litre bag, 8/16 mm diameter
Substrates: 4, 50-litre bags of:
- Sieved top soil: 0/15 (30%)
- Compost 0/10 (20%)
- Composted bark: 0/15 (20%)
- Composted horse manure: (10%)
- Wood fibre (20%)
Origin: France
Weight of the bags:
- Clay beads: 10 kg
- Substrates: around 20 kg
Accessories and spare parts
Battery station
Battery voltage: 6V,
Battery capacity: 3.2 Ah,
Overvoltage protection: Around 6.7 V
Deep discharge protection: Around 5.6 V
Voltage threshold for switching back on: Around 6.2 V
Output voltage: 6 to 9 V DC adjustable
Maximum output load current: 3 W
Maximum input module power: 5 Wp
Type of protection: IP 44
Maximum pump operating time with a full battery: 4 hours continuous or 24 hours if a programmed watering of 10 minutes per hour recommended by Biopratic is set)
Automatic solar pump
System voltage and operating voltage: 6 to 9 V DC
Power consumption: Around 230 Ma
Maximum discharge height: Around 0.7 m
Discharge at 6 Volts DC: Around 240 litres per hour
Type of protection: IP 68
Operating temperature: + 4 to 40 °C
Protection against dry running: Yes
Solar panel
Type of cells: Polycrystalline
Number of cells: 16
Nominal power: 5 Wp
Nominal voltage: 7.68 V
Operating voltage when empty: 9.28 V
Nominal current: 651 Ma
Circuit breaker current: 770 Ma
Type of protection: IP 44
Temperature range: – 30 ° C to + 75 ° C
Extension lead for the solar panel
A 5-metre extension lead to move the solar panel around
Capillaries for drip watering
The capillaries supplied are 1-metre long with an output diameter of 1 mm and are available in 3 models (12 strands, 8 strands or 4 strands))
Central watering system
Length of connection pipe (around 1 metre), integrated socket, supplied with 1 clamping ring and 1 gasket to ensure that the bracket is securely fastened.
Why choose Biopratic?
Ultra simple installation
Rainwater and residual watering water recovery
The garden of a lifetime
Powered by solar energy
